Density Measurement
High-precision digital density meters for real-time monitoring and process control in industrial environments.

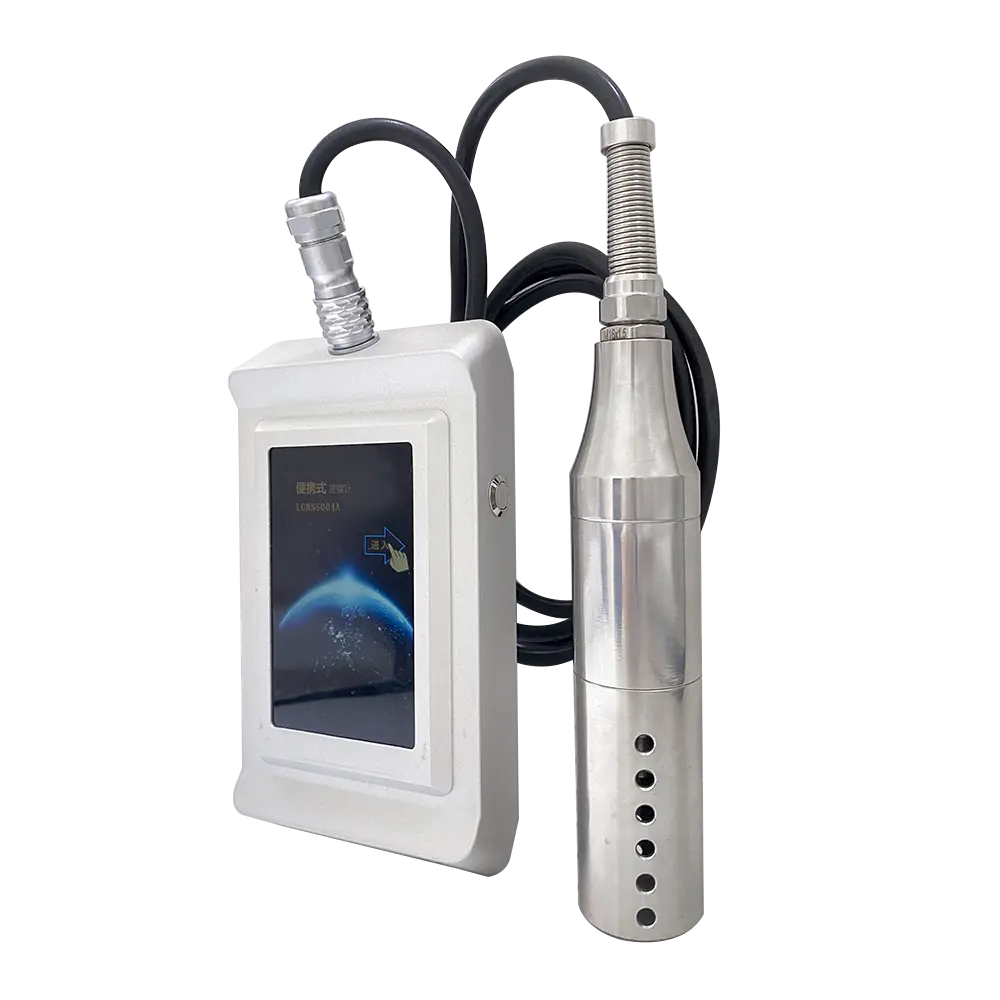

Portable Density & Concentration Meter LONN800A – Split-Type Touch Screen
LONN800A split-type portable density & Concentration meter and handheld concentration meter, ±0.001g/cm³ density accuracy, ±0.5% concentration accuracy. Tuning fork sensor, 4.3″ touch screen, detachable probe, 5-second response.
- Measurement Type： Density + Concentration (split-type)
- Density Range： 0-2.5 g/cm³
- Density Accuracy： ±0.001 g/cm³
- Density Resolution： 0.0001 g/cm³
- Density Repeatability： ±0.0002 g/cm³
- Concentration Range： 0-100% (pre-programmed curves at 20°C)
- Concentration Accuracy： ±0.5%
- Response Time： ≤ 5 seconds
- Power Supply： Built-in lithium battery (7.4V DC) + USB-C charger
- Display： 4.3-inch color LCD touch screen
- Sensor Type： Tuning fork vibration (detachable probe)
- Probe Material： 316L stainless steel
- Cable Length： 1.5 m standard (extendable to 10 m)
LONN800 Professional Handheld Density & Concentration Meter
LONN800 handheld density & concentration meter is aportable, battery-powered density and concentration measurement instrument designed for on-site testing in pharmaceutical, chemical, ±0.003g/mL accuracy. Measures density, concentration & Baumé. Portable, battery-powered, 2-second response.
- Measurement Type: Density + Concentration + Baumé (integrated)
- Density Range: 0-2 g/mL (custom calibration available)
- Density Accuracy: ±0.003 g/mL
- Density Resolution: 0.0001 g/mL
- Density Repeatability: ±0.0005 g/mL
- Concentration Range: 0-100% (calibrated at 20°C)
- Concentration Accuracy: ±0.5%
- Response Time: 2 seconds
- Power Supply: Built-in lithium battery (3.7V DC) + charger
- Display: LCD with backlight (button operation)
LONN7001 Tee Ultrasonic Density & Concentration Meter — Flange DN25 Inline
LONN7001 tee ultrasonic density & concentration meter with flange DN25 connection. Non-nuclear acoustic impedance, 4-20mA/RS485. For chemical & petrochemical inline monitoring.
- Measurement Principle： Ultrasonic Acoustic Impedance
- Measuring Range： 0–100% solids (concentration); 0.5–3.0 g/cm³ (density)
- Accuracy： ±1% of reading (concentration)
- Output： 4-20mA + RS485 Modbus RTU
- Process Connection： Flange DN25 (ANSI/DIN/JIS)
- Process Temperature： -25°C to +150°C
- Power Supply： 24V DC or AC220V
LONN7000 Insert Ultrasonic Density & Concentration Meter
LONN7000 insert ultrasonic density & concentration meter for real-time slurry monitoring. Non-nuclear acoustic impedance, 4-20mA/RS485. For mining.
- Measurement Principle： Ultrasonic Acoustic Impedance
- Measuring Range： 0–100% solids (concentration); 0.5–3.0 g/cm³ (density)
- Accuracy： ±1% of reading (concentration)
- Output： 4-20mA + RS485 Modbus RTU
- Process Connection： Flange (DN50–DN200)
- Insertion Length： 200–1000 mm (customizable)
- Power Supply： 24V DC or AC220V
LONN6004 Explosion-Proof Alcohol Density & Concentration Meter
LONN6004 alcohol density concentration meter for real-time ABV and ethanol monitoring in distilleries, breweries, and bioethanol plants. Ex d IIC T6 explosion-proof; 4-20mA + RS485; 316L U-tube sensor; ±0.001 g/cm³ accuracy. Contact anna@xalonn.com for pricing.
- Measurement Principle： U-tube Oscillating Frequency
- Measuring Range： 0.1–5 g/cm³; custom ABV range
- Accuracy： ±0.001 g/cm³
- Output： 4-20mA + RS485 Modbus RTU
- Process Connection： Flange / Thread / Clamp
- Power Supply： 24V DC
Ceramic Tuning Fork Density Meter — LONN-700C for Abrasive Slurry Applications
LONN-700C ceramic tuning fork density meter: ±0.002 g/cm³ accuracy in abrasive slurry.
Ceramic fork tines (1200+ HV) resist sand/mineral erosion.
Non-nuclear design eliminates radioactive licensing.
4-20mA + RS485; ANSI/DIN/JIS flange or tri-clamp.
LONNMETER serves 130+ countries.
- ✅ Superior Abrasion Resistance: Ceramic fork tines (1200+ HV) withstand sand, mineral ore, and tailings particles that destroy standard metal fork surfaces — extending sensor service life by 5-10× in slurry service
- ✅ Proven ±0.002 g/cm³ Accuracy: Ceramic fork tines add zero interference to vibration frequency — accuracy identical to standard polished fork configuration
- ✅ Wide Slurry Compatibility: Handles particles up to 50μm diameter, suspended solids up to 40%, and gas content up to 20% — suitable for most mineral processing and mining slurry circuits
